We have been producing dry ice since 2007. From the very beginning, we have worked intensively on our production equipment, constantly adapting and improving it to meet our practical needs. The result of this was our first fully in-house developed pelletizer in 2011.
The most important goals of our developments are reliable and user-friendly production machines. Two series of pelletisers and two series of converters have emerged from the first in-house development.
All components are manufactured and assembled in Germany. Our systems are robust, reliable and cost-effective. With minimal space requirements, they offer maximum performance. With only 4 KW connected load, they are economical in power consumption.
Our dry ice production machines are “Made in Germany”, from design to manufacturing and final assembly. Whenever possible, we use regional suppliers. However, we always make sure that our machines can be easily and cost-effectively maintained and repaired abroad.

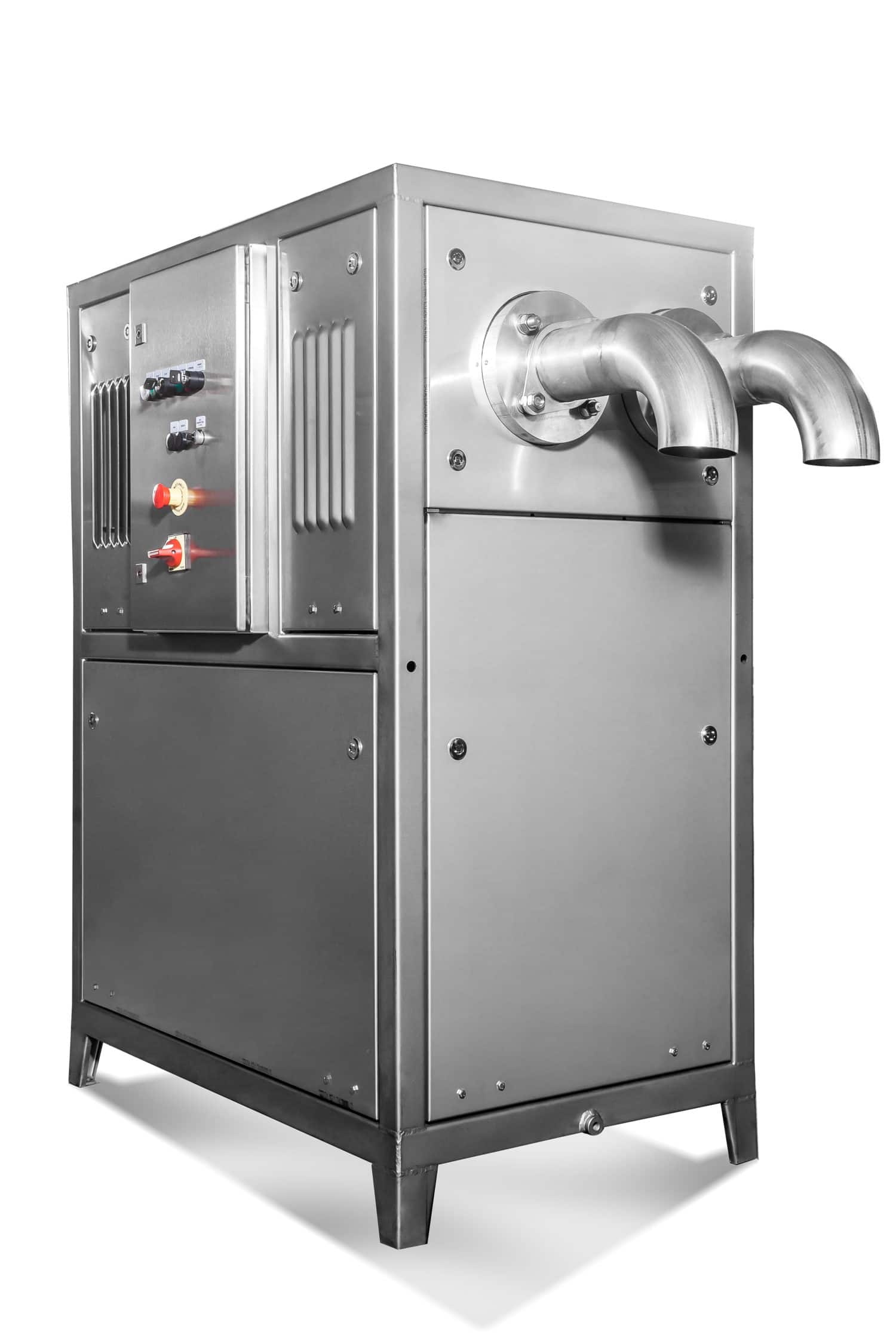

Pelletizer PT-P-100
Our PT-P-100 pelletizer is the ideal entry-level model for anyone just starting out in dry ice production. You already produce dry ice, but are struggling with capacity bottlenecks? Then the P-100 is also the right choice for you. It is designed to achieve maximum performance with minimum space requirements. This production machine can be ideally combined with the RE80 recovery unit to increase the production volume with the same CO² demand. Do you have a higher demand? Then perhaps our PT-DP-200 pelletiser would be something for you.
| Weight | 450 kg, Stainless steel housing |
| Dimension | (WxLxH) 700 x 1100 x 1530 mm |
| Production quantity | ca. 110 kg/h |
| Pellet size | 3 mm – 16 mm* |
| CO² input | G 1/2 ″ flat sealing with approx. 18 bar inlet pressure |
| Power consumption | approx. 4 kWh |
| Operating voltage | 3 x 400 Volt / 50 Hz |
| Drive type | Hydraulic cylinder with approx. 12 to |
| Power connection | CEE 16 A |
*The size of the pellets / nuggets depends on the die used.
Pelletizer PT-DP-200
The PT-DP-200 pelletizer, or more simply, our double pelletizer, achieves twice the production volume of our PT-P-100 with the same energy consumption thanks to its optimized control system and an additional press unit. And that’s not all. Both press units can also be operated individually and with different dies. With this pelletizer, two different products can be operated simultaneously and with the same space requirement as our entry-level model PT-P-100. The PT-DP-200 is ideally combined with the RE160 recovery unit for optimum CO² utilization.
| Weight | 620 kg, Housing made of stainless steel |
| Dimension | (WxLxH) 700 x 1100 x 1530 mm |
| Production quantity | approx. 210 kg/h |
| Pellet size | 3 mm – 16 mm* |
| CO² input | G 1/2 ″ flat sealing with approx. 18 bar inlet pressure |
| Power consumption | approx. 4 kWh |
| Operating voltage | 3 x 400 Volt / 50 Hz |
| Drive type | Hydraulic cylinder with approx. 12 to |
| Power connection | CEE 16 A |
Our special exchange service
If your pelletizer is defective, we will provide you with a replacement pelletizer during the repair period.
This means that you have no production downtime and can continue working without interruption.
Reformer PT-UM-600
The PT-UM-600 converter presses blocks and discs with variable heights of up to 100 mm from dry ice pellets or nuggets. You have the possibility to produce discs and blocks between 500 g and 3 kg. As with our pelletisers, we have placed a lot of emphasis on making the converter robust, cost-effective and easy to operate.
| Weight | 800 kg, Housing made of stainlee steel |
| Dimension | (WxLxH) 95 x 1495 x 1640 mm (1880 mm with funnel) |
| Production quantity | approx. 600 kg / h, depending on the block size |
| Block size | (W x L x H) 100 x 200 mm, height variable up to 100 mm |
| Weight blocks | 0,5 – 3 kg |
| Power consumption | approx. 4,8 kWh |
| Operating voltage | 3 x 400 Volt / 50 Hz |
| Drive type | Hydraulic cylinder |
| Power connection | CEE 16 A |
Are you considering whether your own dry ice production makes sense for you? Simply contact us by phone at +49 2226 82412 60 and let us advise you.
